IoT² 608

Multistandard Mobile Network Simulator

(Download the Product Flyer)

IoT² 608

Integrators and developers of cellular network based M2M solutions need easy-to-use tools to test and develop their products.

A dedicated network simulator for testing provides:

  • deterministic test conditions (impossible to maintain with public operators)

  • simulation of ideal and/or specific network conditions (cell re-selection, hand-over)

  • simulation of error cases like weak signal conditions or network overload

  • full network-side protocol traces of the cellular protocol stack

    The IoT² 608 is invaluable in developing secure and reliable M2M products.

M2M Solution Testing

Modern M2M solutions based on mobile networks (GSM, GPRS, EDGE, 3G, HSPA, LTE) often use cellular modems which are tested and pre-certified by the modem manufacturer for compliance with regulatory standards and/or protocol conformance. Still, manufacturers of M2M solutions need to perform a variety of tests regarding the electrical/RF integration, including antenna design. Reliability and Security of the application software need to be ensured for all scenarios encountered in various mobile networks the product may roam to.

IoT² 608

End-to-End Tests

While the electronic and RF design of a given M2M solution is fairly static and related tests could thus be performed once by external laboratories, the application software side is typically developed much more dynamically, with frequent updates across the product life-cycle. Testing continuously against simulated cellular networks not only speeds up development, but also allows to test against a much wider range of scenarios, leading to more robust, secure and reliable M2M product solutions.

Common test scenarios include:

  • Weak signal conditions at defined RF levels

  • Cell and operator change

  • Roaming to other Operators

  • wanted / unwanted SMS, Voice calls etc.

  • Availability of data services

  • Testing across all available cellular bands

  • Erroneous scenarios inside the operator, which lead to ceased or partially ceased services

Multiple Networks & Operators

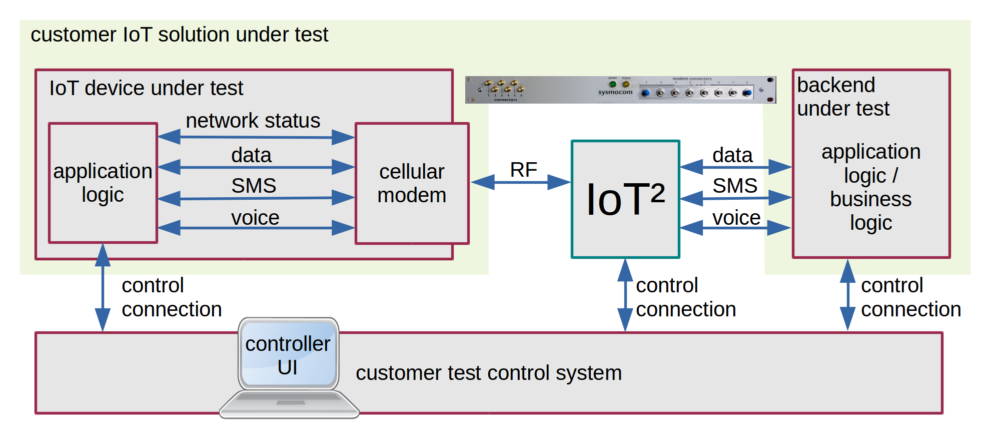

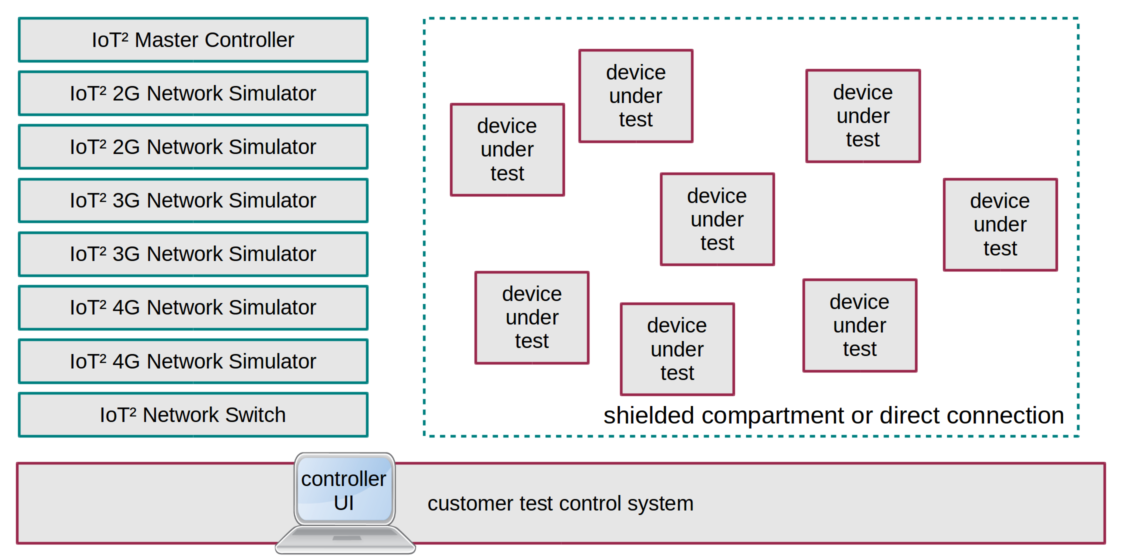

The sysmocom IoT² 608 Internet of Things Tester provides a versatile solution to simulate the above network situations and many more in a complete automatable environment. Up to six network simulators are combined and controlled by a master controller. The master controller provides two separated mobile operator environments to simulate roaming and provider change. The signal level of each cell (network simulator) can be individually attenuated to arrange for a dynamically changing RF environment. The devices under test (DUT) can be connected either directly via coaxial cable, or be placed inside a RF shielded compartment for testing over the air interface. In order to self-test the system at any time, the master controller is equipped with an internal cellular modem.

IoT² 608

Web UI for Basic Control

A state of the art Web UI gives the engineer control over system setup, cellular network settings and logging facilities. Multiple configurations can be stored and recalled. A status screen shows the main settings and system status at a glance. Scripting API

For the development of automated tests and the control of the entire system, a versatile REST API provides commands for

  • mobile network settings

  • RF configuration & attenuation

  • Mobile data settings

  • Subscriber management

  • SMS functions

  • Voice call simulation

  • Logging

Flexible Setup

Matching your M2M application's maturity, you may start with a minimal IoT² system configuration consisting of only three modules (master controller, one network simulator and network switch). This setup can be expanded at any time with additional network simulators, to cover further cellular standards or more complex test scenarios as needed.

Available Components

Short Form

Description

IOTTMC

Master Controller

IOTT2G

Network Simulator 2G

IOTT3G

Network Simulator 3G

IOTT4G

Network Simulator 4G

IOTTSW

Network Switch

IOTTDR

Desktop Rack 19"

All components are in 1U 19" form-factor with shallow depth and could be ordered as a complete testing unit in a 9U Desktop Rack (other cases for higher mobility on request).

Technical Data

Common Features

  • Dimensions: 19" 1U 265mm depth

  • Power Supply: 110-240V AC

IoT² 608 Master Controller

  • 6 x attenuable connectors for network simulators

  • Attenuation range approx. 31.5dB

  • 1 master RF connector for shielded compartments or

  • 8 x RF connectors for cabled devices

  • serial connector (SUB-D9)

  • 3 x Gigabit Ethernet connectors

  • 2 independent mobile network setups

  • built-in reference modem

  • Web UI

  • HTTP REST API for M2M control

IoT² Network Simulator 2G

  • GSM 850/900/1800/1900 quad-band

  • 1 TRX / 8 timeslots

  • Timeslot configurations: CCCH, CCCH+SDCCH/4, SDCCH/8, TCH/F, TCH/H, PDCH

  • Ciphering: A5/1, A5/2 and A5/3

  • Data: GPRS PCU with limited feature set. Initial EDGE implementation.

IoT² Network Simulator 3G

  • Available 4Q2016

IoT² Network Simulator 4G

  • Please request
